URS MakineRound Series
/
Request a Quote

Round Series / Round Pro

Round
Pro

Precision in a circular production layout. Configure the format, pallet count and colour capacity around your operation.

Request a QuoteSpecifications
URS Round Pro automatic screen printing machine

Engineered for production

Fast access. Precise control.

Operator-focused controls and precise mechanical adjustments support efficient setup and consistent printing.

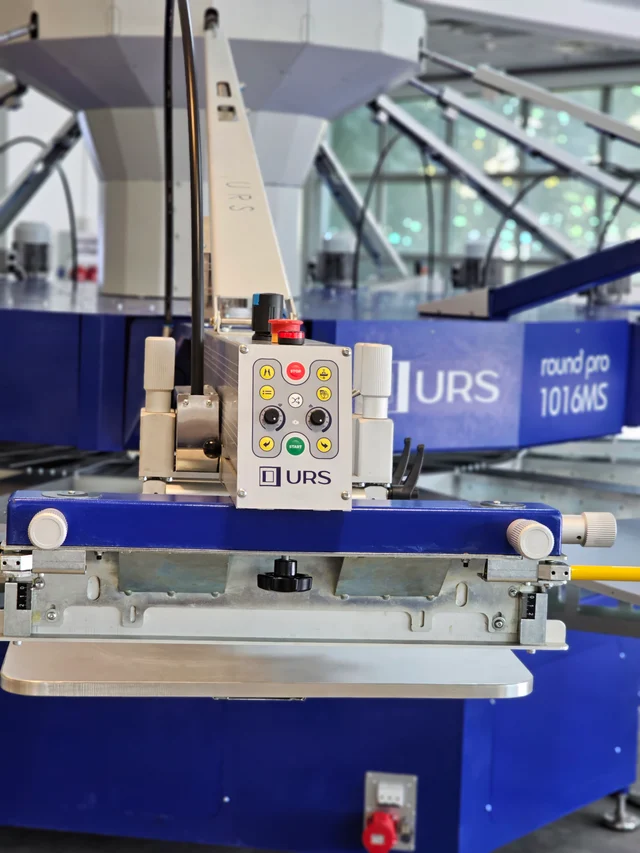

Independent control panel on a URS Round Pro printhead
Independent controlImmediate access to essential printhead adjustments.

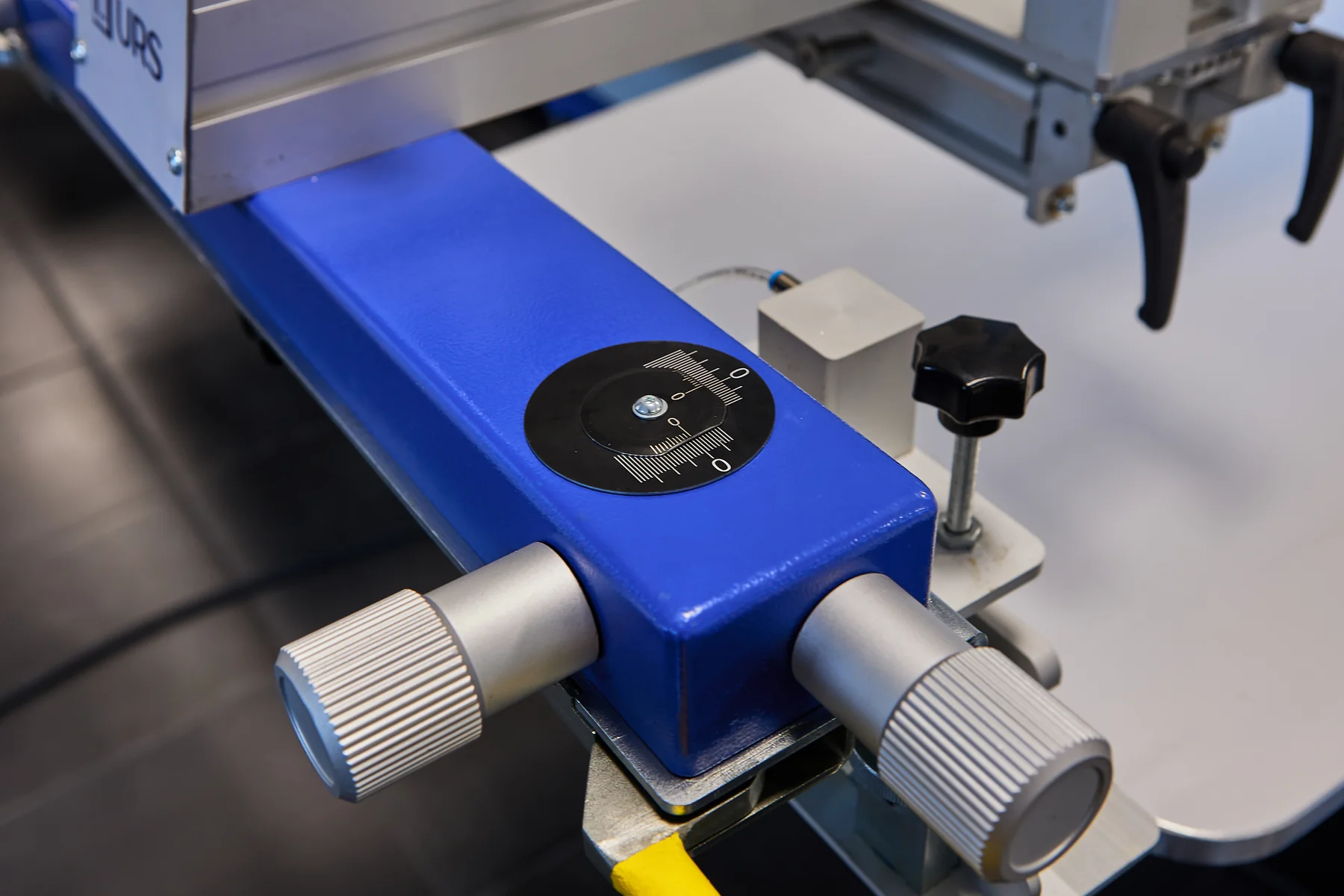

Micro-registration screen system used on URS Round Pro
Micro-registration systemPrecise screen positioning with clear adjustment references.

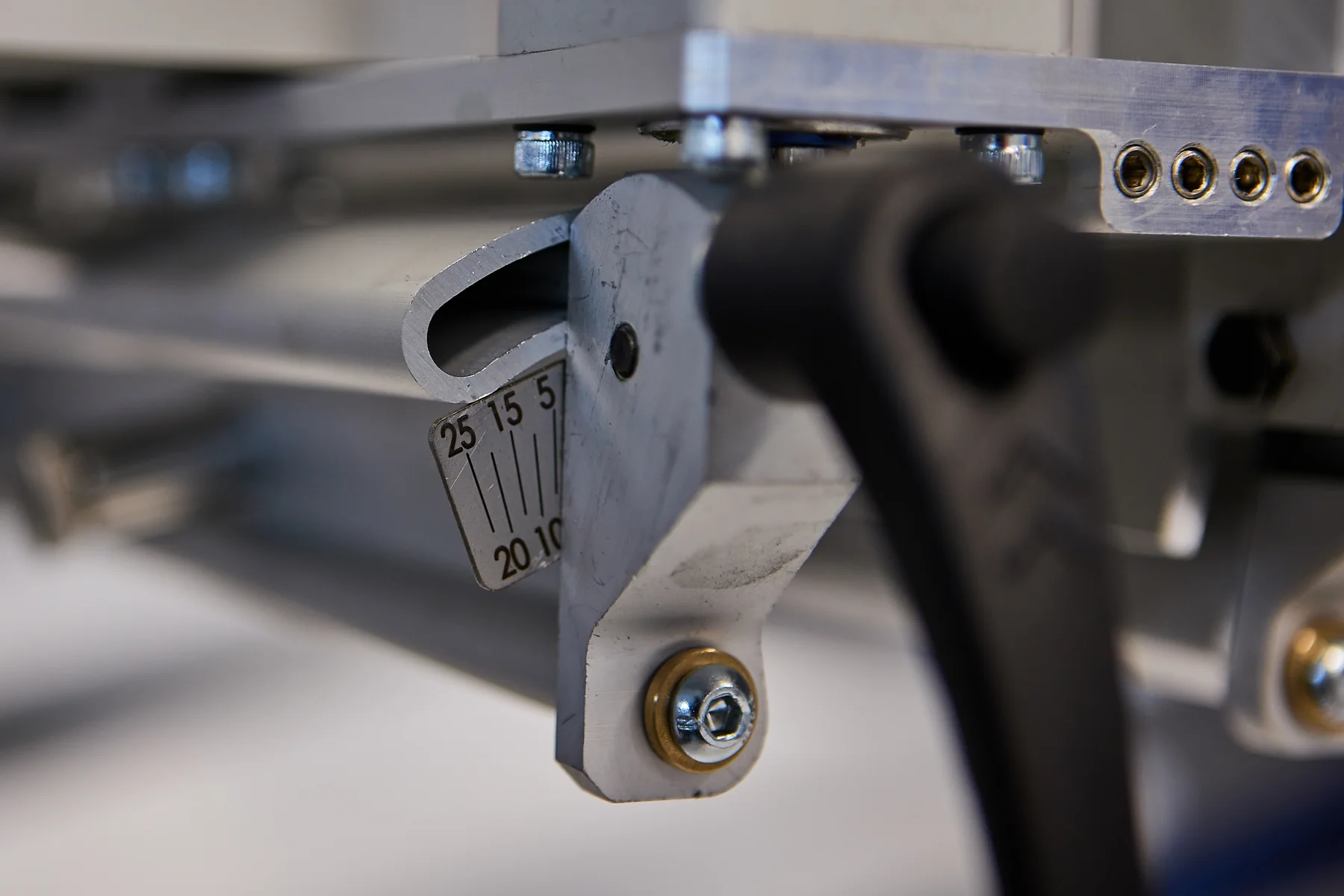

Squeegee angle adjustment used on URS Round Pro
Squeegee angle adjustmentVisible reference scale for repeatable setup.

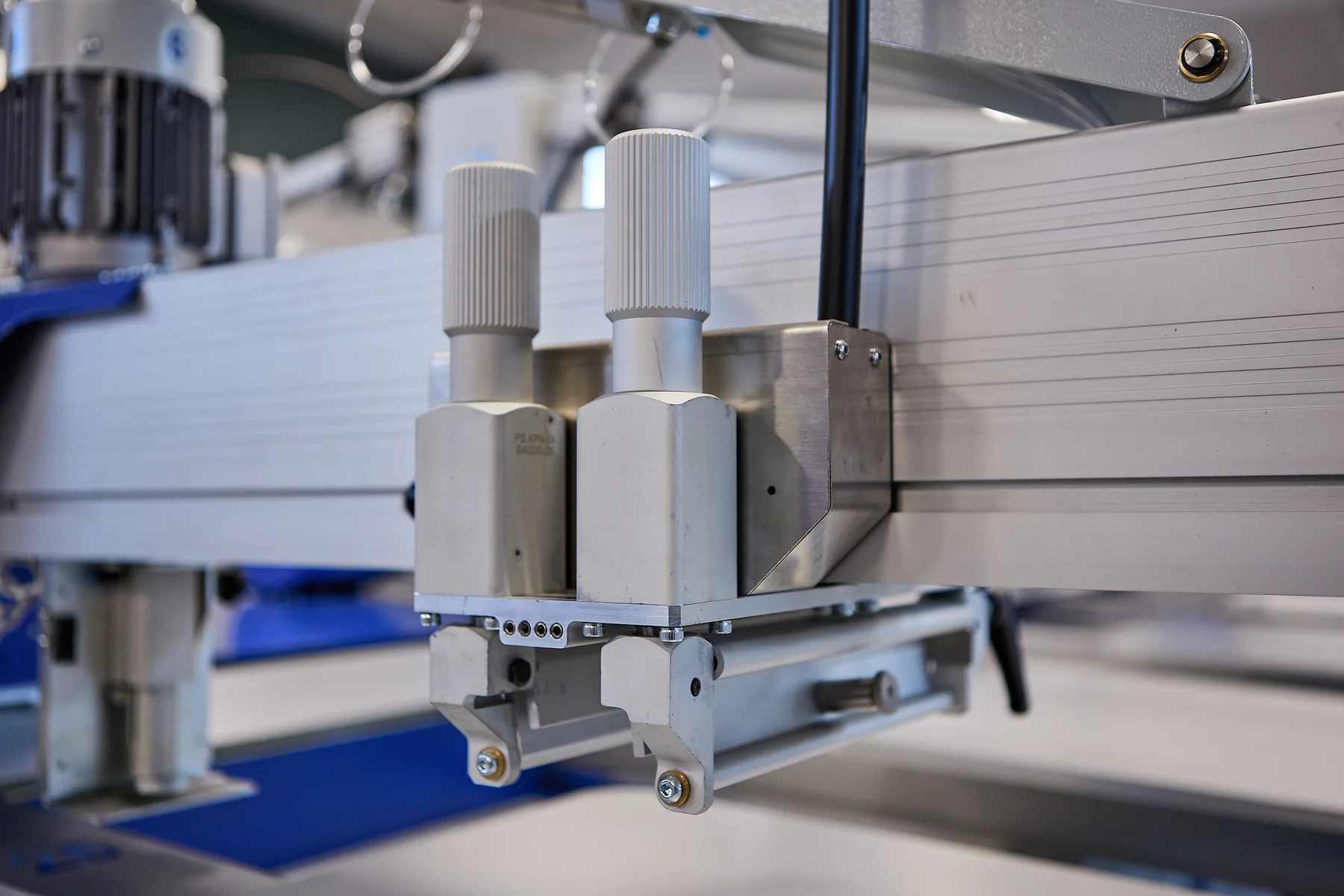

Precision squeegee pistons used on URS Round Pro
Precise squeegee pistonsFine mechanical adjustment for consistent printing.
FormatPalletsMax. coloursStandard palletPrinting areaProduction speedDiameter range
XS10–16Up to 14450 × 750 mm400 × 500 mmUp to 1,300 pcs/h3.90–5.40 m
SS10–20Up to 18550 × 950 mm500 × 700 mmUp to 1,300 pcs/h4.50–6.65 m
MS14–20Up to 18650 × 1,050 mm600 × 800 mmUp to 1,200 pcs/h5.90–7.20 m
LS14Up to 12750 × 1,250 mm700 × 1,000 mmUp to 1,000 pcs/h6.90 m

Maximum production is based on one squeegee with flooding for A4 size. Pallet and colour capacity depend on the selected format and configuration.

Components & technology

Globally trusted industrial components.

We select proven components from trusted European, Turkish and international manufacturers for reliability, performance and long-term serviceability.

AutomationIndustrial PLC control
PneumaticsPrecision pneumatic systems
Printhead controlVariable-frequency drive control
Pallet movementServo-controlled positioning

Component brands may vary according to machine configuration, availability and continuous technical development. Final specifications are confirmed in the commercial proposal.

Configure the Round Pro for your production.

Request a Quote
