Oval Series / Oval Plus II

Oval
Plus II

An oval platform for scalable production. Configure the pallet count, print colours and working format around your operation.

Request a QuoteSpecifications
URS Oval Plus II automatic screen printing machine

Engineered for your production

Control at every printhead.

Every adjustment is designed to give the operator direct, repeatable control during setup and production.

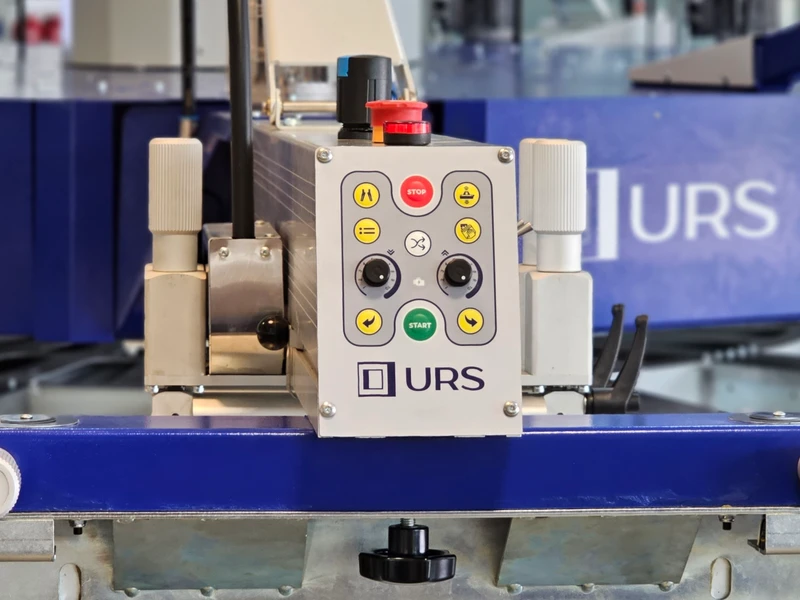

Independent control panel on an Oval Plus II printhead
Independent controlDirect printhead control for fast production adjustments.
Squeegee angle adjustment mechanism
Squeegee angle adjustmentVisible reference scale for repeatable setup.

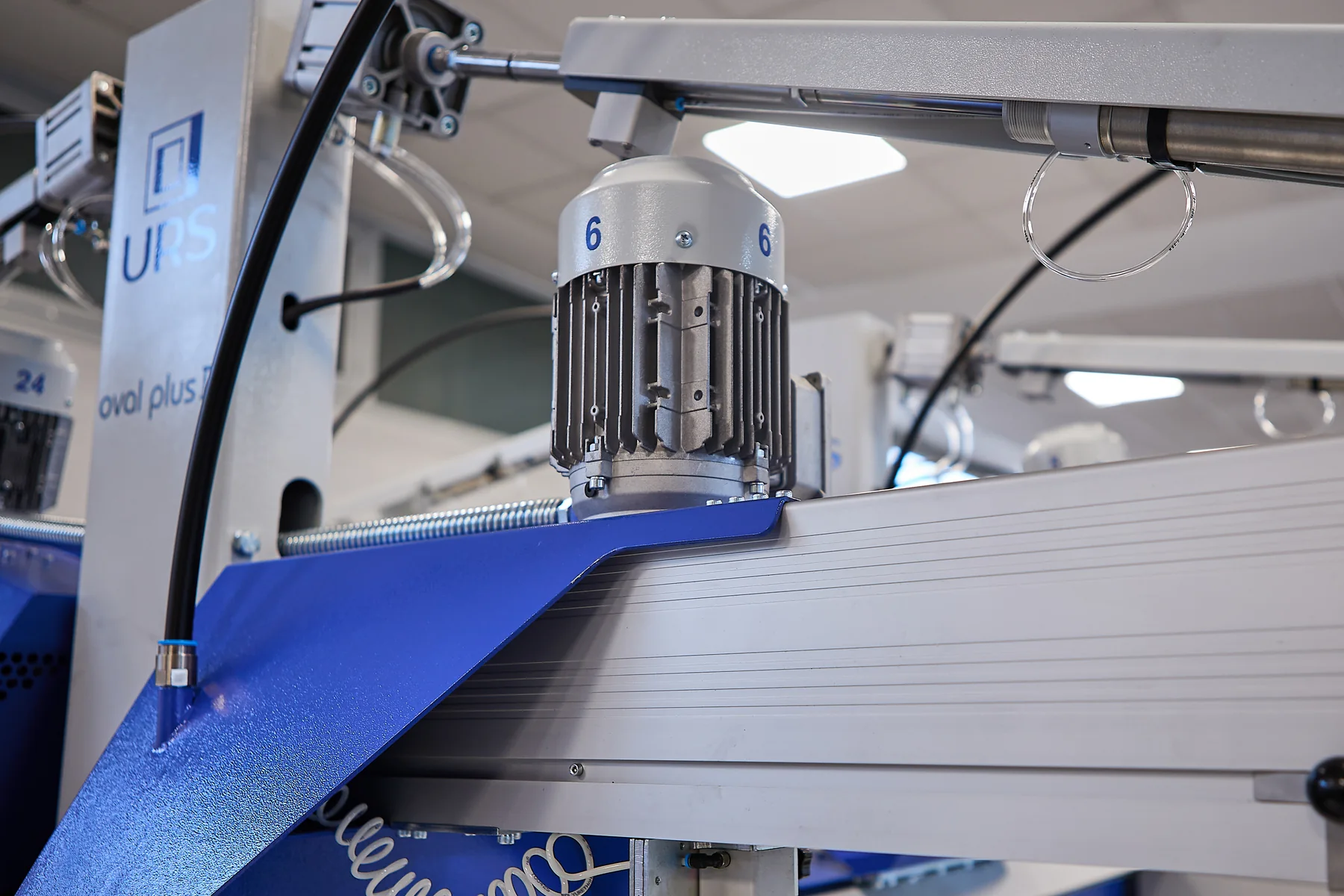

AC frequency drive motor on the Oval Plus II
AC frequency driveControlled squeegee movement at each printhead.
Precision squeegee pistons
Precise squeegee pistonsFine mechanical adjustment for consistent printing.
Micro-registration screen system
Micro-registration systemPrecise screen positioning with clear adjustment references.

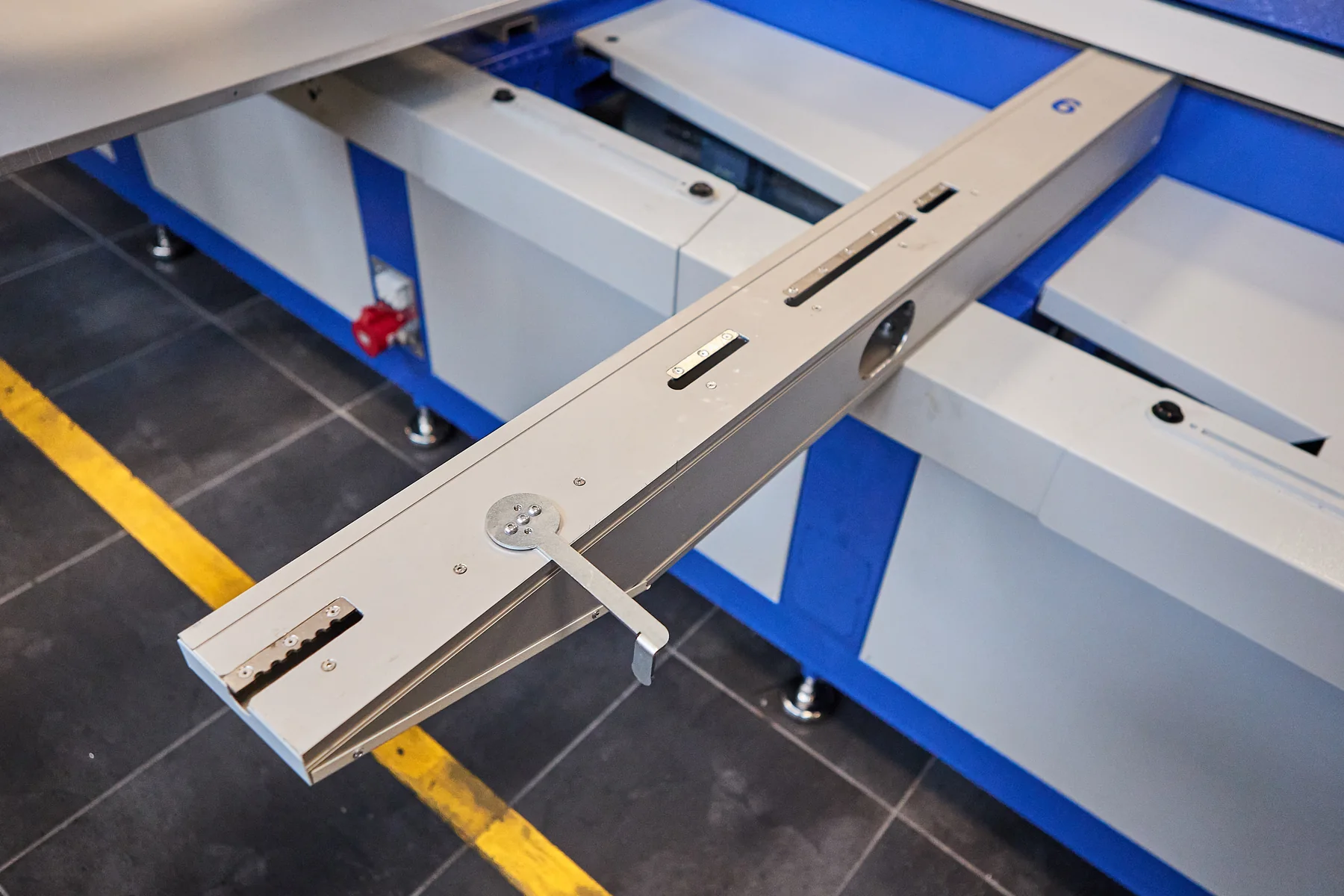

Oval Plus II pallet support
Pallet supportRobust support engineered for stable, repeatable production.
FormatPalletsStandard palletPrinting areaProduction speedMachine width
SSFrom 18550 × 950 mm500 × 700 mmUp to 1,000 pcs/h3.65 m / 12.0 ft
MSFrom 18650 × 1,050 mm600 × 800 mmUp to 1,000 pcs/h3.90 m / 12.8 ft
MS+From 18720 × 1,050 mm650 × 800 mmUp to 950 pcs/h4.10 m / 13.5 ft

Configurations start at 18 pallets. Systems with 62 pallets or more can be engineered according to the production project.

Components & technology

Globally trusted industrial components.

We select proven components from trusted European, Turkish and international manufacturers for reliability, performance and long-term serviceability.

AutomationIndustrial PLC control
PneumaticsPrecision pneumatic systems
Printhead controlVariable-frequency drive control
Electrical systemIndustrial-grade components
Printhead driveHigh-performance motors
Pallet movementServo-controlled positioning

Component brands may vary according to machine configuration, availability and continuous technical development. Final specifications are confirmed in the commercial proposal.
